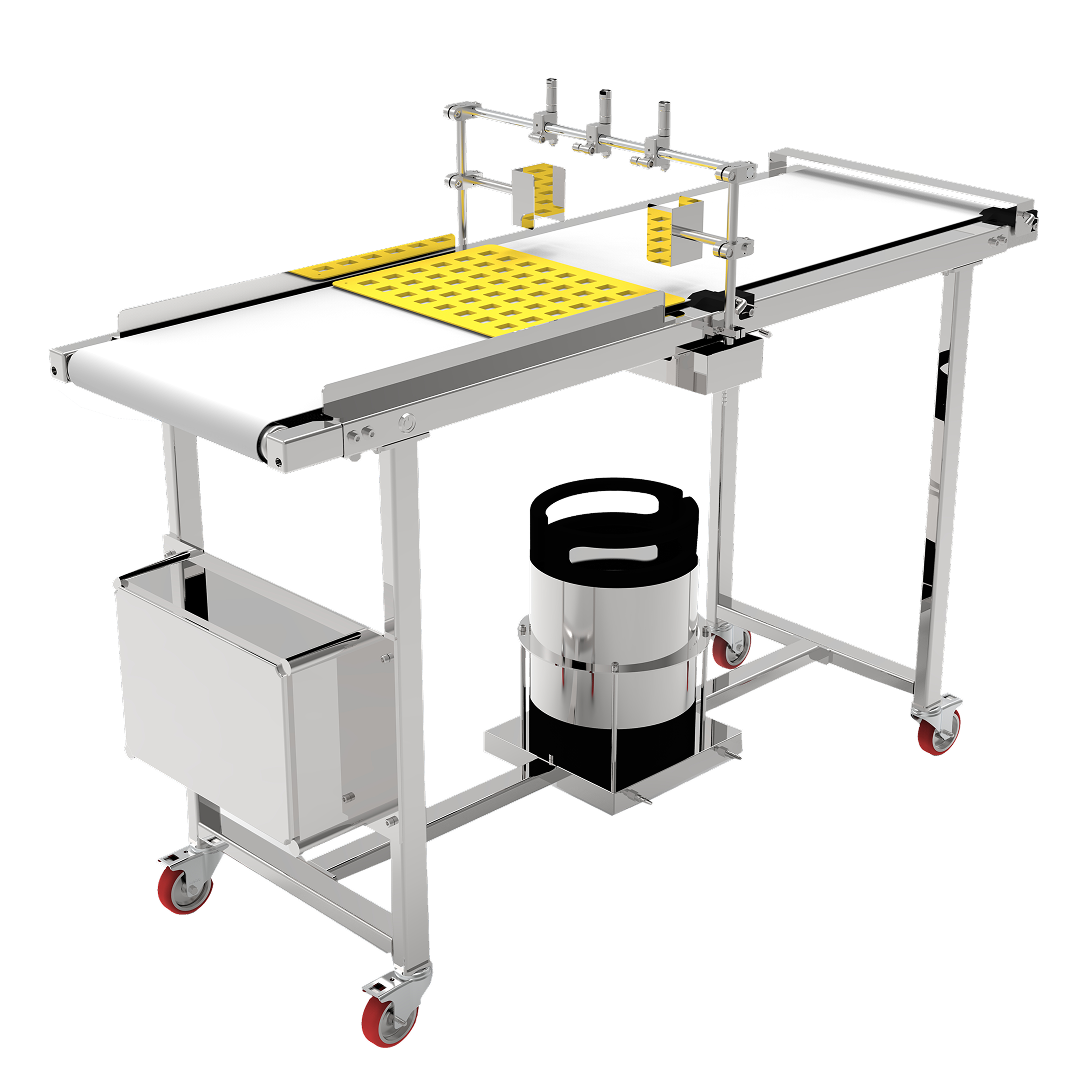

SP-3Xi
Automated Solenoid Based
Mold Oil Spray System
Lubricates 48,600 cavities/hour. Cuts waste, improves consistency, and saves staff time.
Overview
The SP-3Xi Automated Mold Oil Spray System is a high-precision, conveyor-based solution designed to take the guesswork out of mold lubrication. Delivering up to 48,600 cavities per hour with ±0.01 g accuracy, it ensures consistent coverage while cutting down on oil waste, overspray, and labor costs.
Built for the demands of confectionery production yet versatile enough for a wide range of food and industrial applications, the SP-3Xi packs industrial-grade performance into a compact, portable design.
Engineered for small to mid-size confectionery operations, the DM-3XP-4V combines pneumatic-driven power, ergonomic design, and hygienic washdown capability, ensuring smooth integration into your production line.
High Precision
Ensures precise oil application with ±0.01 g accuracy every cycle.
High Output Capacity
Delivers up to 48,600 cavities per hour with consistent results.
Waste Reduction
Reduces oil waste and overspray, minimizing production costs.
Compact & Portable Design
Industrial-grade performance in a durable, space-saving system.
Features
High-Speed Precision
Lubricates up to 48,600 cavities/hour with ±0.01 g accuracy.
Airless, Micro-Deposit Technology
Solenoid frequency-driven actuation ensures uniform coverage without overspray.
Adjustable Control
Fine-tune oil frequency and conveyor speed for your exact production needs.
Warranty Coverage
Backed by a 1-year manufacturer’s warranty.
Get the Full Technical Data Sheet
Low-Maintenance Efficiency
Tool-less spray tip replacement and integrated self-cleaning oil catch system for fast, hassle-free upkeep.
Flexible Applications
Perfect for gummy molds, but also effective in food, nutraceutical, industrial, and pharmaceutical lubrication processes.
Portable & Hygienic Design
Stainless steel construction, washdown ready, and built for CIP (clean-in-place) operation.

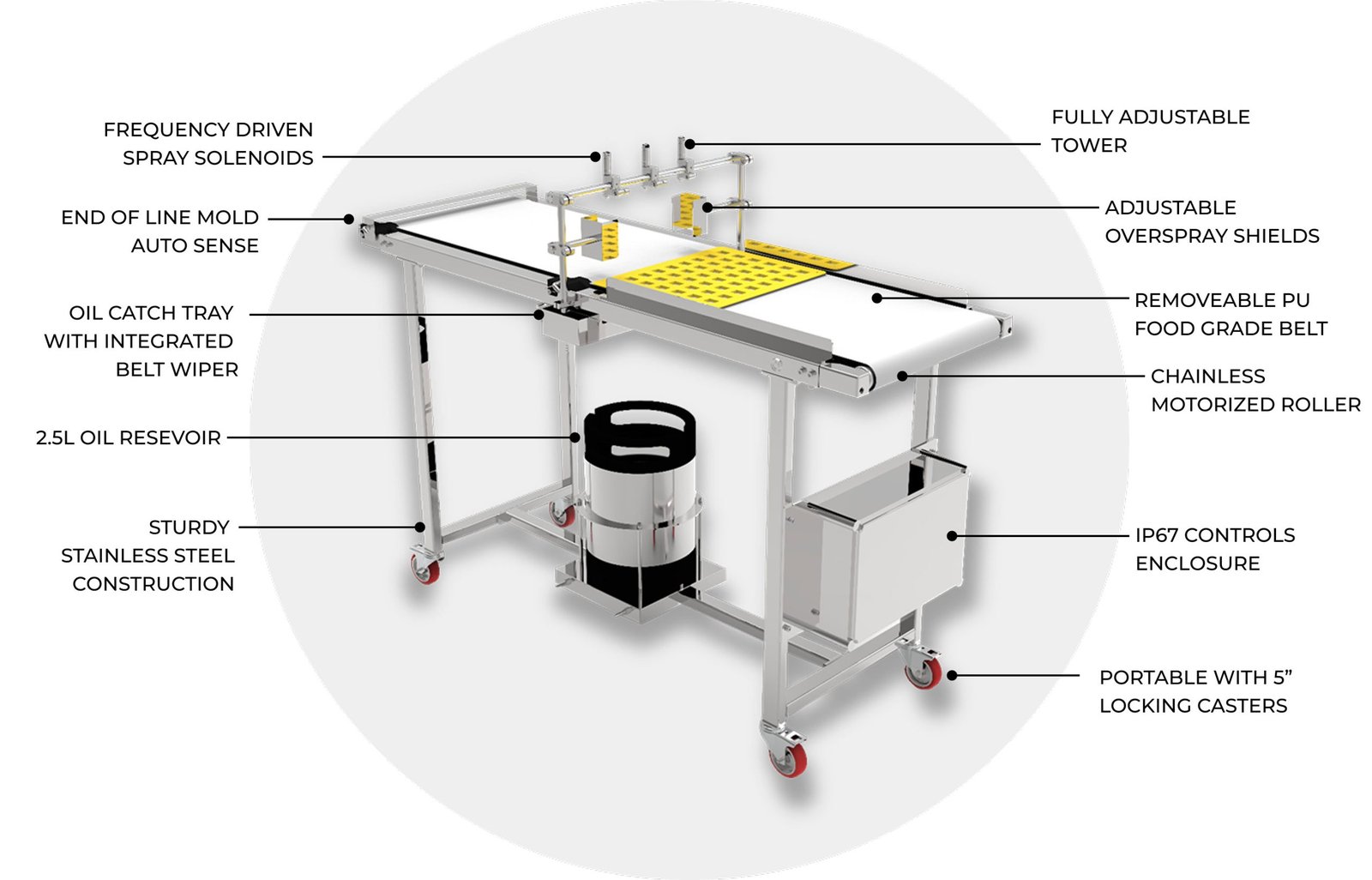

Specifications
Length
60 in (1524 mm)
Width
17 in (432 mm)
Height
36 in (914 mm)
Wheels
5 in locking caster wheels for portability
Weight
75 lbs (34kg)
Construction
Stainless steel 304 with PU food-grade removable belt
Supported Mold Size
Ideally suited for 15 in wide molds.
Mold Capacity
Accommodates up to 5 molds at any given time
Throughput (6x9 configuration)
900 molds/hour
48,600 mold cavities/hour
Spray Consistency
±0.001g (oil viscosity dependent)
Voltage
120VAC, 60Hz, 2.5A
Power Cord
10ft cord, grounded plug
Conveyor
Inline 5ft conveyor with adjustable speed
Drive System
Chainless stainless steel motorized drum roller (low maintenance, long life)
Spray System
3 pneumatic solenoid heads, frequency-driven for precise micro mist application
Nozzles
Tool-less replaceable spray tips. Available with different spray patterns and volumes
Oil System
2.5l 120psi rated canister with 100psi pressure relief, 50 micron filter, quick connect fittings
Overspray Management
Equipped with shields & oil catch tray with wiper (self-cleans belt during operation)
Mold Cavity Detection
Fiber optic mold cavity detection
Emergency Stop Button, resettable breaker
90 PSI fixed pressure regulator – for consistent and repeatable results
Pressure Relief Valve ensures oil canister is not over pressurized beyond its limits
End of line fiber optic mold detection automatically stops operation ensuring molds do not fall to floor.
IP67-rated controls enclosure & IP67 drum motor (suitable for full CIP washdown)
Consistent, automated mold lubrication eliminates manual spraying, minimizing worker strain
Ordering Information
P/N: SP-3Xi
Inline automated oil spray system on a 5 ft inline conveyor. Complete system, without molds.

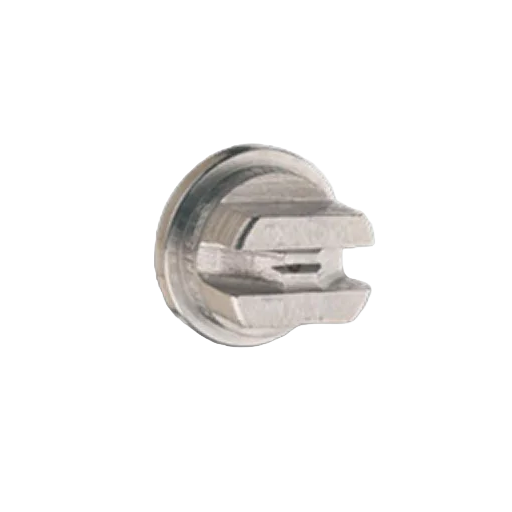

P/N: SP-8001SS-80
Replacement spray tip. Tapered edge flat spray for uniform coverage. Corrosive resistant stainless steel, 80-degree spray angle, provides finest application performance. Available in a variety of spray patterns and orifice size.
P/N: 9010648-60
Replacement food grade PU belt for 5 ft conveyor. Stainless steel 304 clipper lacing for ease of installation

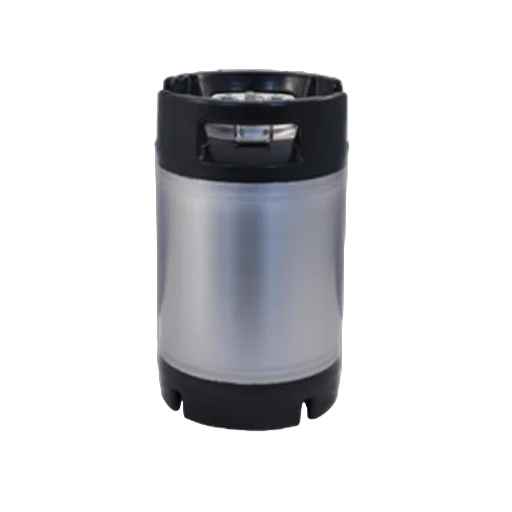

P/N: SP-CN-2.5l
Stainless steel 2.5l oil canister. Pressure rated to 120 PSI. Equipped with 100 PSI Pressure Relief Valve (PRV), lid and plastic handle and base.
Take your production to the next level - without the cost, footprint, or labor risks of over sized systems
