9010018-2V
Automated Servo-Based Gummy
Inline Depositor
High-Speed Gummy Depositing Made Simple
Boost your production with our automated servo-based gummy depositor, delivering up to 32,400 gummies per hour with unmatched accuracy and consistency (± 0.002g).
Overview

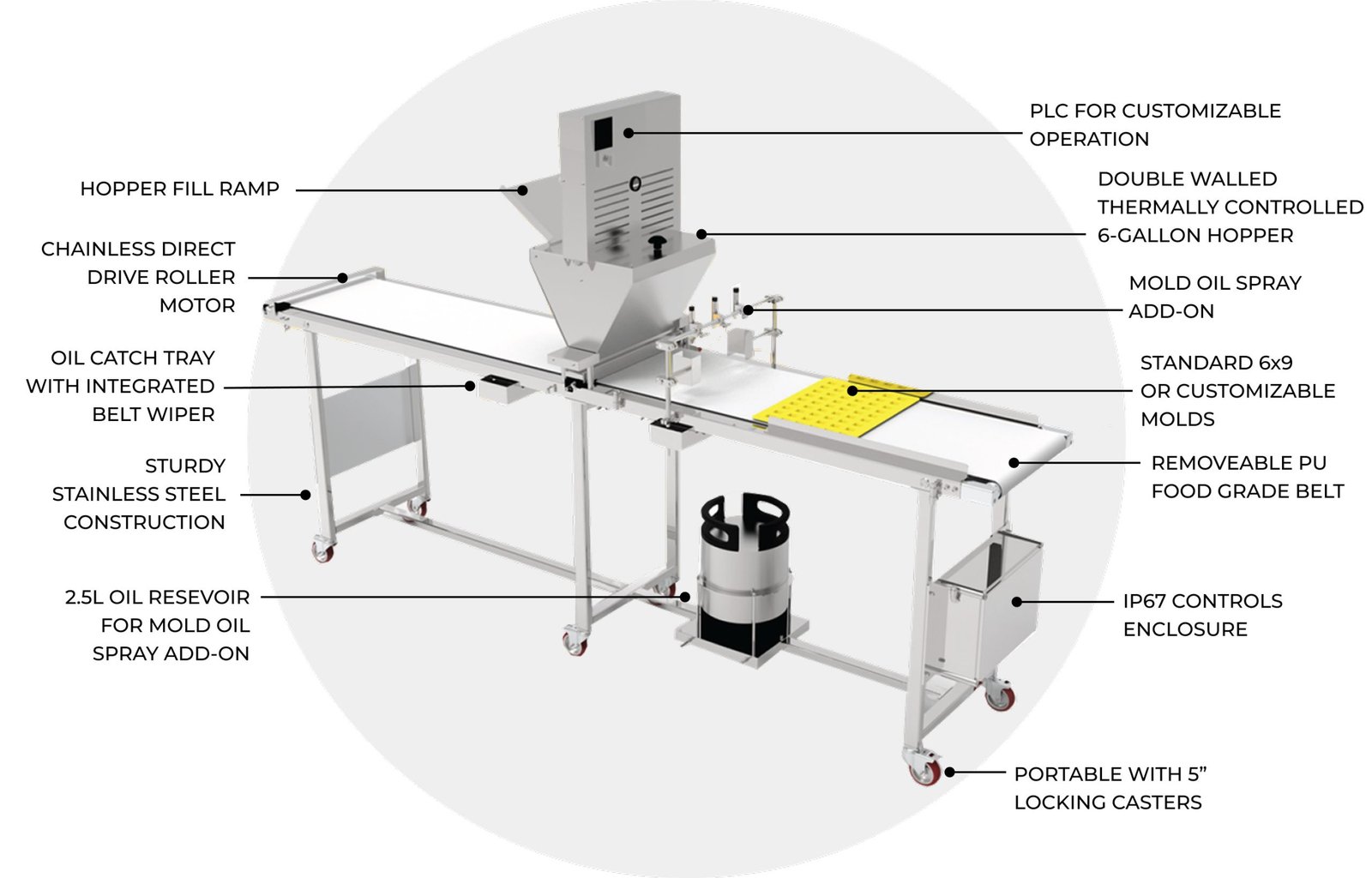

Designed with a temperature-controlled double walled 6-gallon hopper, inline mold lubrication add-on, removable conveyor belt, and clean-in-place capability, it’s built for speed, hygiene, and reliability. Fully compatible with gelatin or pectin formulas and customizable molds, this system packs industrial-grade performance into a portable, easy-to-maintain design – all at a fraction of the cost of large-scale equipment.
Our patent pending dispensing nozzles eliminates costly tails, which result in waste and lost productivity when demolding. Automatic operation reduces operator strain and fatigue, as compared to manual depositing systems, mitigating operator injury and OSHA claims.
This system offers a cost-effective, high-output solution for gummy production, designed to meet the needs of both growing and established operations – without the premium price tag.
High Performance
Industrial-grade efficiency in a compact, portable system.
Customizable Molds
Compatible with gelatin and pectin formulas and a range of mold types.
Cost-Effective Solution
Delivers high output and reliability—without the premium price tag.
Temperature Control
Double-walled 6-gallon hopper maintains optimal formula conditions.
Features
High Output
Deposit up to 32,400 gummies/hour, matching the throughput of larger systems.
Unmatched Accuracy
±0.002g precision ensures product consistency and eliminates costly variation.
Optimized Hopper Design
Temperature-controlled, double-walled 6-gallon hopper maintains ideal conditions for both gelatin and pectin formulas.
Inline Mold Lubrication (Add-On)
Reduces waste and ensures smooth demolding.
Get the Full Technical Data Sheet
Clean-In-Place System
Simplifies sanitation and minimizes downtim
Removable Conveyor Belt
Easy maintenance and flexible operation.
Customizable Silicone Molds
Compatible with a wide range of shapes and layouts to match your product line.
Portable Design
Equipped with lockable castors, easily move to relocate.
Specifications
Length
120 in (3048 mm)
Width
20 in (508 mm)
Height
36 in (914 mm) to conveyor bed
60 in (1524 mm) to top of tower
Wheels
5 in locking caster wheels for portability
Weight
570 lbs (269kg)
Construction
Food-safe 304 stainless steel & 5052 hard anodized aluminum
Mold Capacity
Accepts up to ten 15” x 11.5” molds on conveyor at a time
Depositing
18 pistons = 18 gummies every 2 seconds
Throughput
32,400 gummies per hour
Accuracy
±0.002 g (formula dependent)
Nozzle
Patent-pending tail-free nozzle, field replaceable
Voltage
120VAC, 60Hz, 10A
Power Cord
10ft cord, grounded plug
Drive System
Depositor – Servo-driven piston drive
Conveyor – Chainless direct-drive motorized roller with speed control
Hopper
Double-walled closed hopper with heat transfer fluid & PID controlled 750W immersion heater cartridge
Cleaning
Clean-In-Place (CIP), average clean time 30-45 minutes
Controls
PLC deposit/motion controller, solid state PID, Pause buttons (each end of conveyor), oil spray volume controller
Emergency Stop
Mushroom E-Stop/Standby
Automatic Stop
Mold End-of-Line Stop eye prevents molds from rolling off conveyor
Limit Switch
Self-restoring temperature limit switch, cuts out at 220°F
Conveyor
10 ft or 5 ft option
Mold Lubrication System
Mold spray system with 2.5l oil canister, solenoid based frequency driven pneumatic spray heads for precise control
Minimal servicing required, long service life
Off-the-shelf replaceable components
Assembled and tested in USA
Low cost of ownership, fast ROI
Backed by a 1-year Parts & Labor warranty
Ordering Information

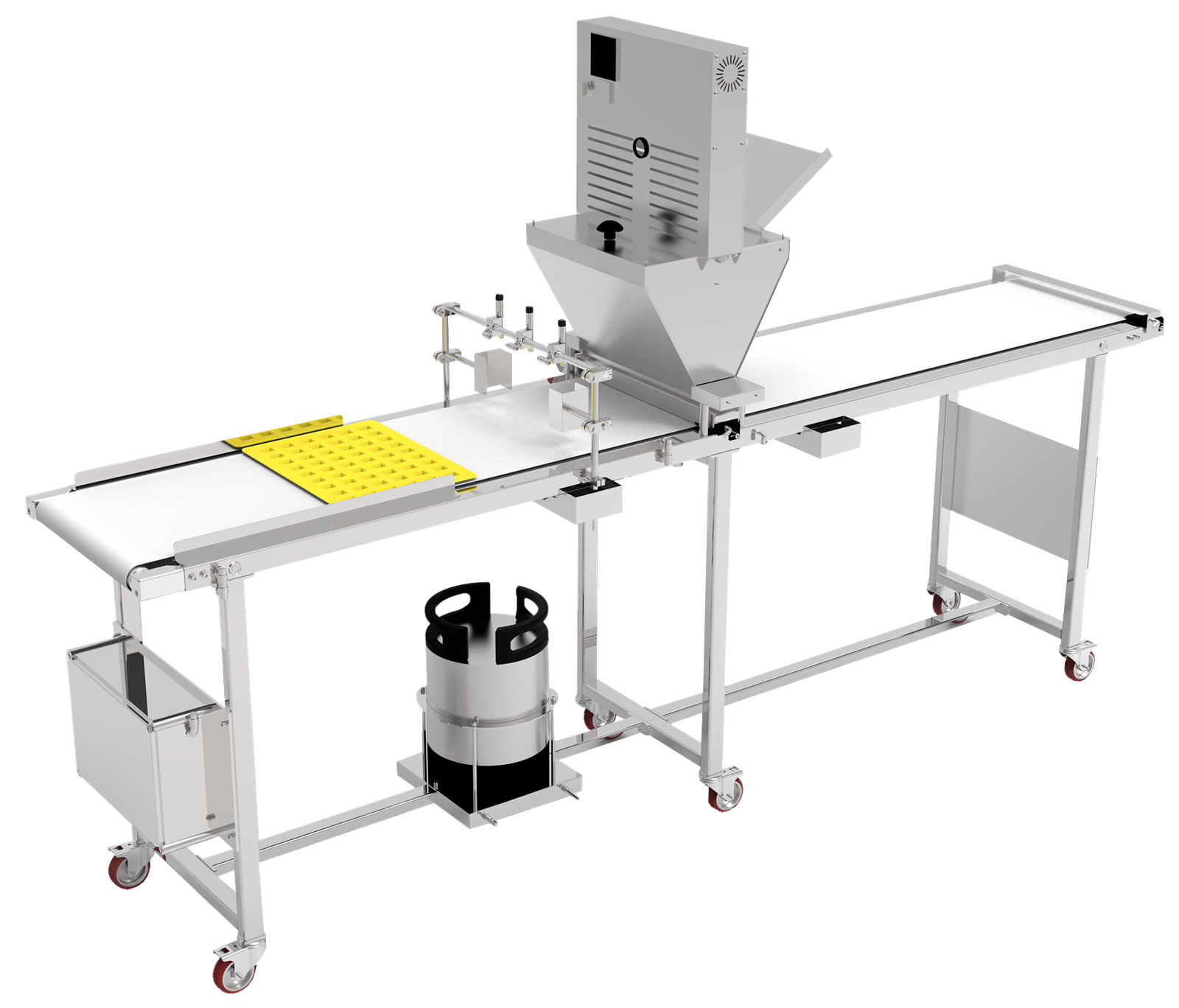

P/N: 9010018-24V-120
Inline automated servo-based 18-piston depositing System on a 10 ft conveyor. Complete system, without molds. Replace X with 1 for optional Oil Spray System, 0 without Oil Spray System.

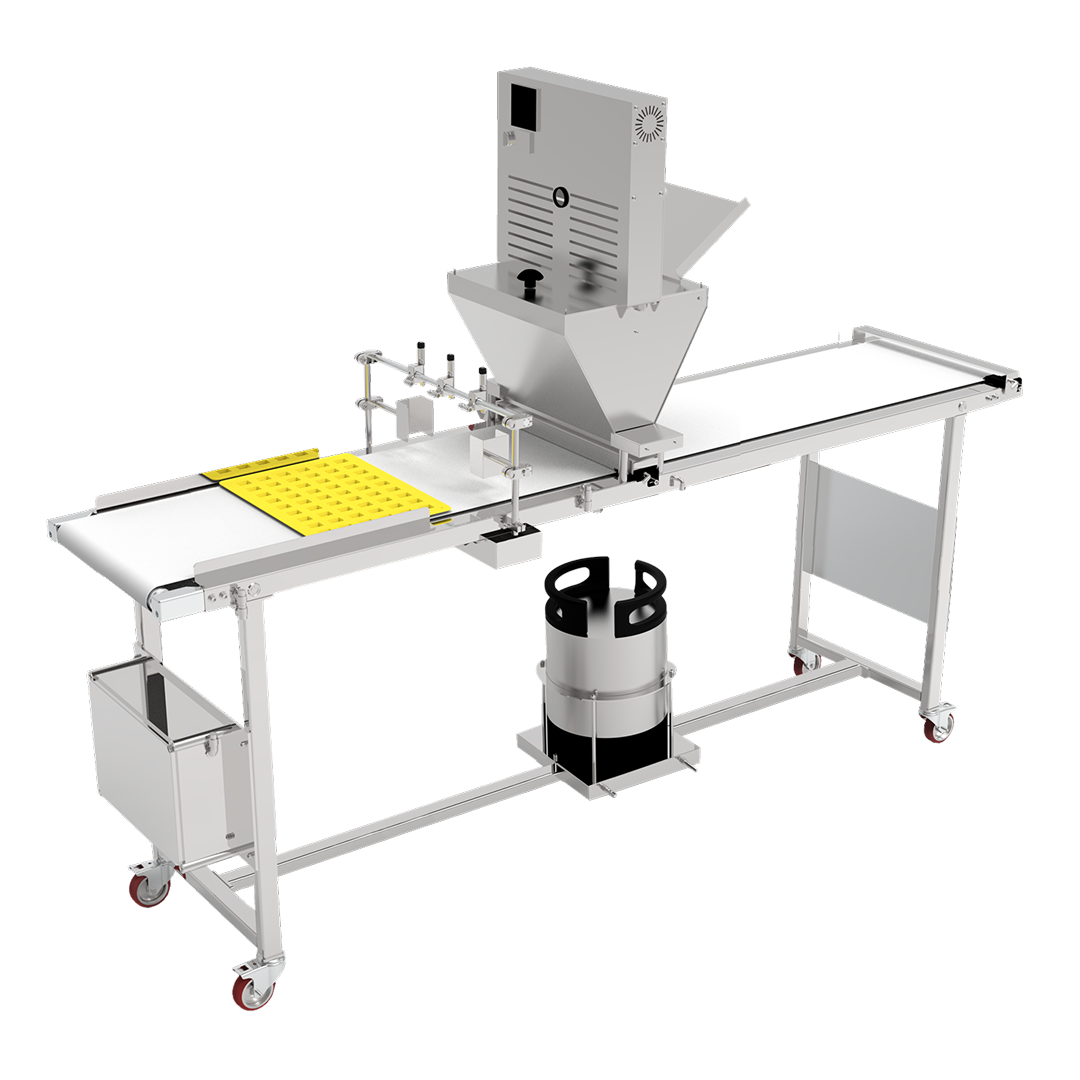

P/N: 9010018-24V-60
Inline automated servo-based 18-piston depositing System on a 5 ft conveyor. Complete system, without molds. Replace X with 1 for optional Oil Spray System, 0 without Oil Spray System.
P/N: 9010140-9x6
Standard 9x6 FDA grade silicone mold. Yellow. 15” x 11.5” overall dimensions with a total of 54) 1.013” x 0.760” x 0.294” cavities. Custom molds available upon request.
P/N: 9010335
Silicone FDA grade patent pending duckbill dispensing nozzle replacement.
Take your production to the next level - without the cost, footprint, or labor risks of over sized systems
