DM-3XP-4V
Automated Gummy Demolder
Confectionery Demolder
Demolds 46,500 gummies/hour. Reduces repetitive strain and labor costs. Stainless-steel build for reliability.
Overview
The DM-3XP-4V Automated Gummy Demolder is built to eliminate the strain, risk, and inefficiency of manual demolding. With the ability to process up to 46,500 gummies per hour, this industrial-grade system delivers unmatched speed and reliability – while keeping operators safe and comfortable.
Engineered for small to mid-size confectionery operations, the DM-3XP-4V combines pneumatic-driven power, ergonomic design, and hygienic washdown capability, ensuring smooth integration into your production line.
High Productivity
Processes up to 46,500 gummies per hour with unmatched speed and reliability.
Operator Safety & Comfort
Designed to keep operators safe, comfortable, and free from manual strain.
Reliable Performance
Engineered for consistent, dependable operation in demanding production environments.
Seamless Integration
Designed to fit effortlessly into existing confectionery production lines.
Features
High Output
Demolds up to 46,500 gummies/hour with a rapid 3-second cycle time.
Pneumatic Drive System
Powerful, consistent demolding with minimal operator effort.
Operator Safety Built In

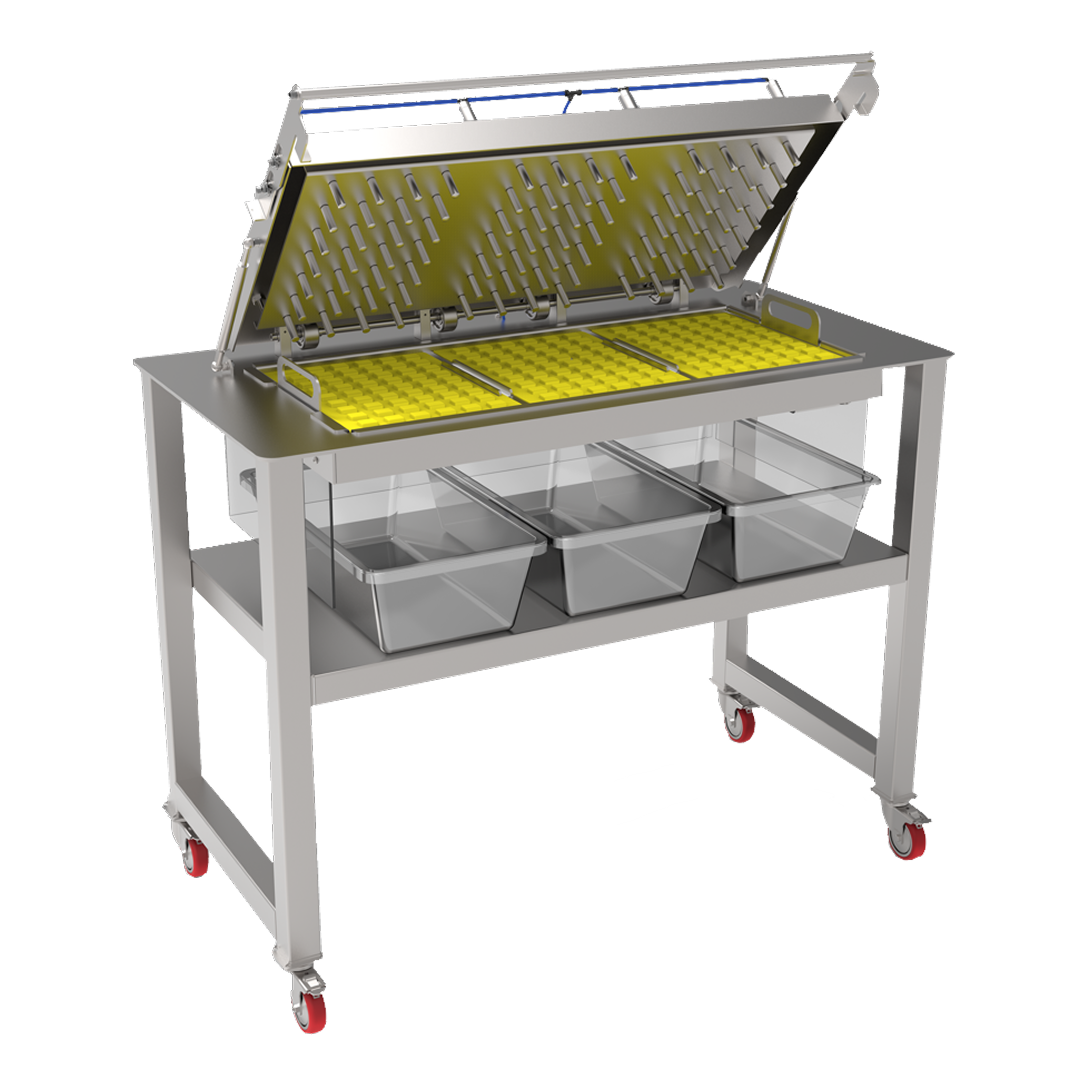

Hinged gas piston-assisted lid, ergonomic wide actuation bar, and locking safety system.
Low Maintenance
Simple, robust design built for long service life with minimal upkeep.
Get the Full Technical Data Sheet
Durable Washdown Design
IP67-rated control enclosure for hygienic full washdown environments.
Flexible Operation
Swappable grates and pinboards, plus locking castor wheels for easy portability.
Customizable Compatibility
Works with standard or fully custom gummy molds.
Warranty Coverage
Backed by a 1-year manufacturer’s warranty.
Specifications
Length
48 in (1219 mm)
Width
24 in (610 mm)
Height
41.5 in (1054 mm)
Wheels
5 inch locking caster wheels for portability
Weight
290 lbs (131kg)
Construction
Food-safe 304 stainless steel
Mold Capacity
Accepts up to three (3) 15” x 11.5” molds
Mold Configuration
Standard: 6 x 9 cavities per mold (192 gummies per cycle). Custom configurations available
Throughput
46,500 gummies per hour
Demold
3 seconds per cycle
12 second reload (typical)
Voltage
110VAC, 60Hz, 302mA
Power Cord
6ft cord, grounded plug
Drive System
Pneumatically operated piston drive
Pneumatic Requirements
90-100 psi. Equipped with air regulator for control
Automation
Automated demolding with minimal user effort
Controls
Lighted power button, programmable cycle patterns & duration, air regulator
Training
Minimal training required, quick setup ready-to-use
Method
IP67-rated controls – suitable for complete CIP washdown
Lid Lock
Engages during demolding to keep operators away from moving parts
Automatic Operation
Reduces manual strain and associated injury risks
Audible Safety
Equipped with pneumatic silencer for minimal noise
Ergonomics
Wide actuation bar for user ergonomics and ease of operation
Hydraulic Assist
Lid equipped with stainless steel gas spring lifts for ease and safety
Safe ejection pins
Safe pin design prevents damage of molds & gummies during ejection
Conveyor
10 ft or 5 ft option
Mold Lubrication System
Mold spray system with 2.5l oil canister, solenoid based frequency driven pneumatic spray heads for precise control
Ordering Information

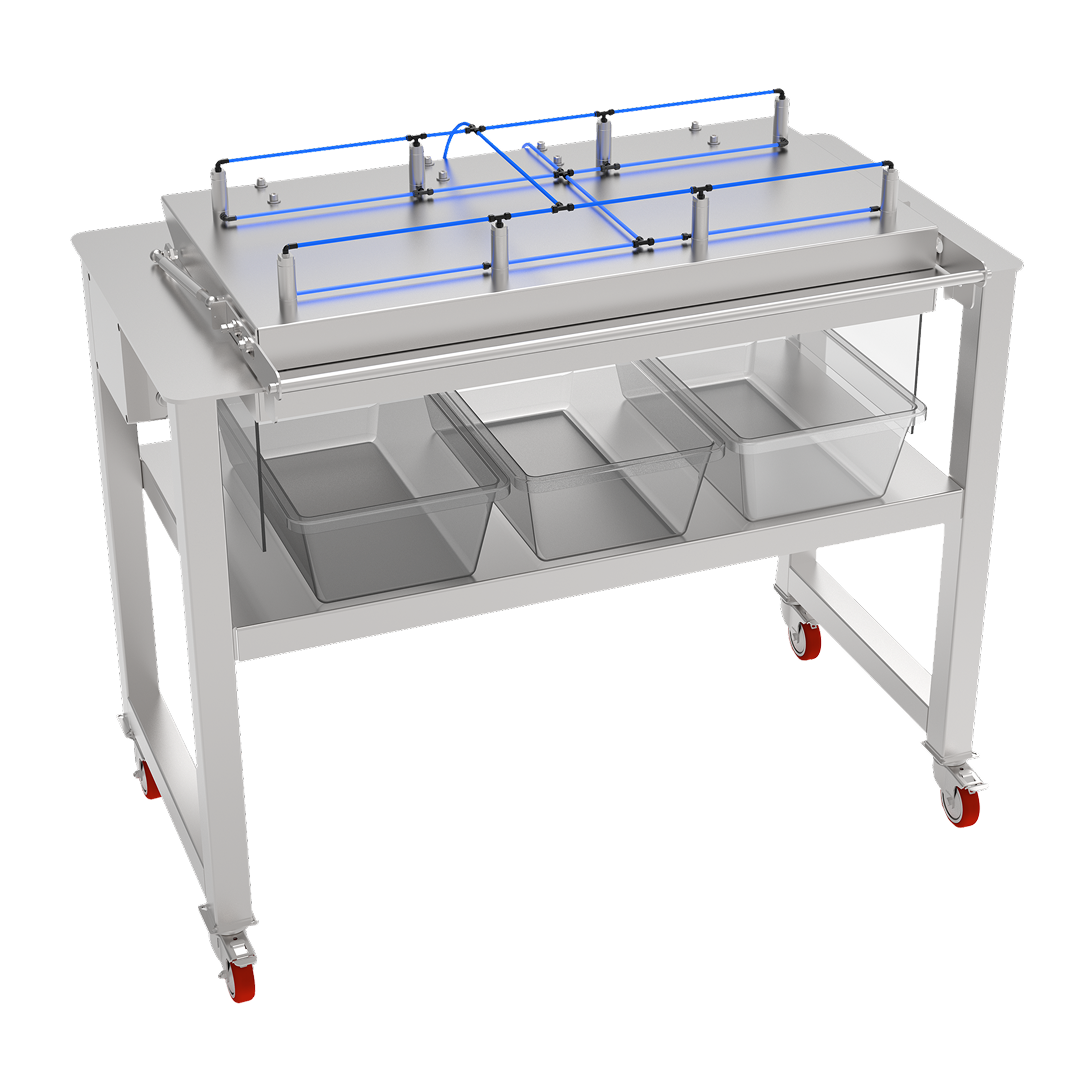

P/N: DM-3XP-4V
Demolder – Complete assembly with bin shields, standard grate and pinboard assembly. Pre-assembled, Plug and Play.
P/N: 9010253-S
Standard 3-mold 192 cavity Grate. Stainless 304 construction. Custom configurations available
P/N: 9010254-S

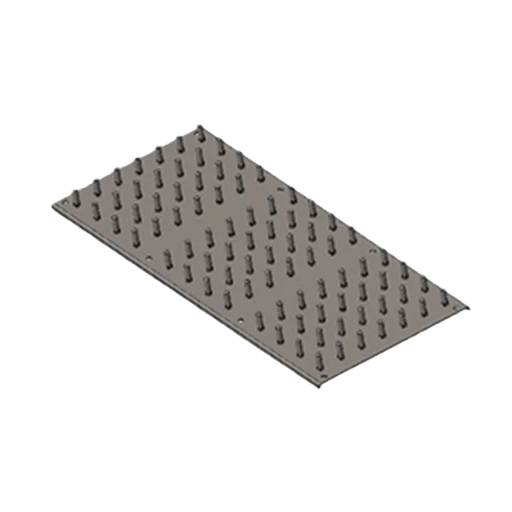

Standard Pinboard assembly, complete with 192 ejection pins. Stainless 304 construction. Custom configurations available.
P/N: 9010254-S

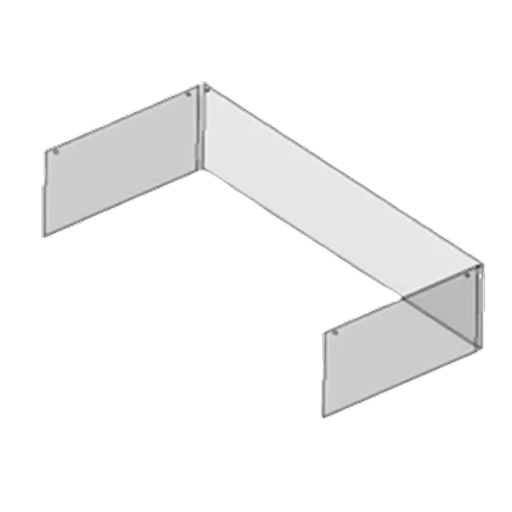

Replacement bin shields, ¼” clear acrylic sheets with guide holes
Take your production to the next level - without the cost, footprint, or labor risks of over sized systems
